Rock Wool & Glass Wool Sandwich Panels | Fireproof Insulation Wall & Roof Panels

PU sealed edge fireproof rock wool sandwich panel

Rock Wool & Glass Wool Sandwich Panel Product Introduction

Product Specifications

· Width: 1000mm

· Custom length: Available according to design, transportation and installation requirements

· Thickness: 50mm / 75mm / 100mm / 150mm / 200mm (customized as customer required)

· Surface material: Inner and outer 0.4~0.8mm color coated steel plate; galvanized steel plate / anti-static color coated steel plate optional

Dimension Parameter

· Corrugation height: 36mm

· Wave peak spacing: 500mm

Advantages

High rigidity, good drainage performance, strong negative wind pressure resistance, tight lap joint, fast construction speed.

System Composition

Top profiled steel plate + High quality rock wool / glass wool core + Bottom profiled steel plate + Polyurethane side seal.

Product Features

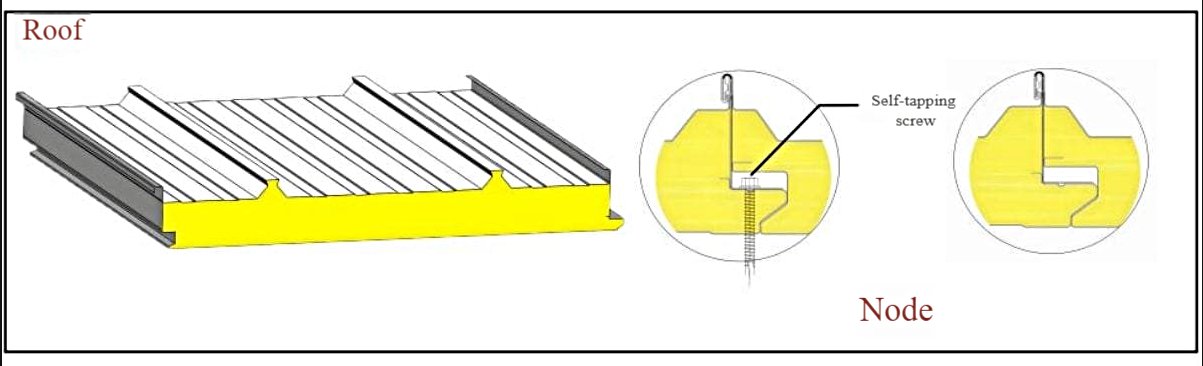

1. Fireproof glass wool roof panel adopts lap joint design, making the splicing tight.

2. Unique waterproof groove design effectively prevents rainwater leakage and avoids thermal bridge effect.

3. 36mm wave peak height greatly improves the bearing capacity of roof panel.

4. While ensuring thermal insulation effect, it reduces project cost; the minimum roof slope can be 3%.
