Steel Structure Bracing Types: How to Choose the Right One for Your Project

In 2021, I consulted on a 20,000 sqm logistics warehouse. The drawings were flawless, but the owner chose the cheapest supplier. The result? The 5mm round tube bracing arrived with only 4.2mm wall thickness. Weld blowholes everywhere. The entire batch was rejected. Construction stalled for 2 months. **Direct loss: over $80,000.** The root cause wasn't just bad quality—it started with the wrong procurement mindset: asking for "price per ton" before confirming the bracing type. This guide walks you through exactly how to choose the right bracing system and calculate total project cost—not just material price.

The 3 Core Functions of Bracing (Why You Can't Skip It)

Bracing isn't just "extra steel." It handles three critical jobs. Securing overall structural stability: Prevents the entire frame from collapsing sideways under horizontal loads. Transferring horizontal loads: Channels wind pressure, seismic forces, and crane braking forces down to the foundation. Facilitating erection safety: Stabilizes the frame during installation before cladding is attached. If the load transfer path breaks at any point, horizontal forces shift to unintended members (like purlins) that aren't designed for it, causing progressive deformation or even structural collapse.

The 3 Main Bracing Types: Pros, Cons & Steel Consumption

Most buyers make a mistake: they ask for quotes before deciding the type. Different types have huge price gaps in fabrication difficulty and steel weight.

Load Transfer Path: The Easily Overlooked Design Factor

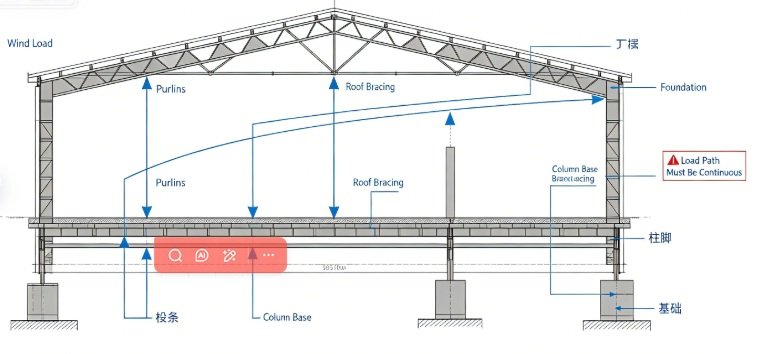

The biggest mistake in bracing layout is incomplete load transfer paths. Force transmission route for wind loads hitting gable walls: Wind load → wall cladding → purlins → end portal frames → roof bracing → column bracing → column base → foundation. If any link in this chain fails, horizontal loads will shift to unintended structural members unable to bear extra stress. National codes require bracing systems to deliver simple and clear load transfer. Roof horizontal bracing and column bracing shall be arranged within the same bay to form a closed spatial bracing frame.
<span style="color:red">RED FLAG: One project failed because roof cross bracing and column bracing were separated by two bays. Horizontal loads had to pass through multiple light tie rods for force transfer. These tie rods were only dimensioned for structural detailing, lacking sufficient bearing capacity. Fortunately, engineers detected the flaw during construction and revised the layout timely. Another factory project encountered cracked bracing members in summer due to thermal expansion and contraction. The design team ignored setting independent bracing systems for each temperature joint section. Per GB 55006, independent bracing frames must be installed for every temperature and seismic section.</span>
Procurement teams shall fully review the complete load transfer path during drawing review: trace force flow from load sources all the way down to foundations, and verify every structural component and connection joint for compliance.

Critical Technical Parameters to Confirm Before Quoting

Don't let suppliers quote blindly. Provide them with these specific parameters, or your quotes will be inconsistent and potentially unsafe.

A. Clear Load Conditions

Many drawing specifications calculate bracing sizes via rough estimation without full load verification. This works for regular projects but fails under extreme working conditions. Secure full load data: dead load, live load, wind pressure, snow load, overhead crane braking force. Dynamic amplification factors are required for crane-bearing bracing instead of simple static calculation.

B. Slenderness Ratio (Buckling > Strength)

Bracing members are slender components. Most compression failures stem from buckling rather than insufficient material strength. Slenderness ratio acts as the core control index. GB 50017-2017: Allowable slenderness ratio = 150 for main compression members, 200 for general bracing compression bars. Stricter seismic requirements: Slenderness ratio ≤ 120 for central bracing compression bars under seismic design. Primary/secondary/tertiary seismic frames cannot use tension-only bracing; slenderness ratio ≤ 180 for tension bracing under grade-four seismic design. For long-span bracing without intermediate lateral supports, improve stability economically by adopting round tubes or double channel steel instead of oversized single sections. These profiles feature larger radius of gyration and higher anti-buckling capacity with minor steel weight increase.
<span style="color:red">Critical Note: Bracing frames supporting multiple columns bear heavy loads, so dimensioning shall rely on actual bearing force instead of slenderness ratio alone. One bracing frame shall support no more than 8 columns in a single direction.</span>

C. Joint Connections Are Critical Failure Points

Many drawings design rigid joints, yet on-site fabrication delivers near-pinned connections, altering internal force distribution of the whole bracing system. Code requirements for joint detailing: Stiffeners shall be added at beam-column and bracing joints for seismic design. Plate width-to-thickness ratios of central bracing members shall comply with GB 50011 seismic limits. For grade-one and grade-two seismic structures: The distance from bracing bar ends to the fixed edge of gusset plates shall be at least 2 times gusset plate thickness, allowing slight out-of-plane buckling of gusset plates during major earthquakes to protect bracing bars. The included angle between each gusset plate edge and connected member axis shall not be less than 30°.
Key acceptance checkpoints for joints: 8.8-grade high-strength bolts or full penetration welds for connections. Gusset plate thickness minimum 6mm. Double-sided stiffeners at column webs. ≥30° angle between gusset edges and member axes.

D. Temperature Section Rule

Did you know thermal expansion can crack bracing in summer? Per GB 55006, independent bracing systems must be installed for every temperature section. Horizontal bracing must be placed at both end bays of each temperature section. If the bay length exceeds 60 meters, you must add extra sets in the middle.

Total Project Cost vs. Unit Price (The Trap)

Look at this real-world comparison:

FAQ: Type Selection

Q: Can I mix X-type and K-type bracing in the same building? A: Technically yes, but not recommended. Mixed styles alter the overall stiffness distribution. Stick to one uniform type per temperature section to avoid unpredictable force transfer.
Q: My supplier quoted me 20% lower. Should I go for it? A: Only if they pass the 3 Factory Audit Checks (covered in Article 2 of this series). A 20% price cut often means thinner tubes, manual welding, or skipping shot-blasting—which will cost you more in rework later.

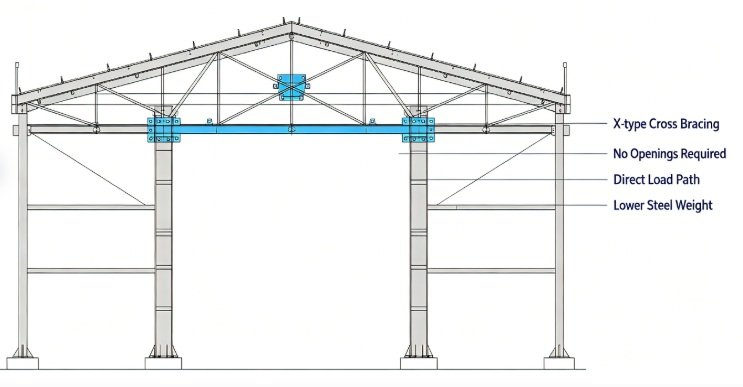

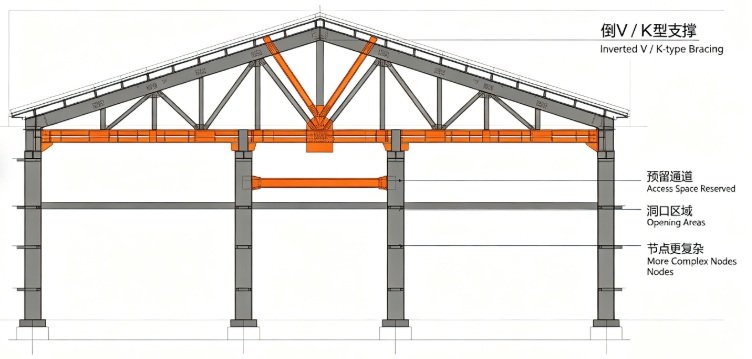

Q: X-type vs Inverted V-type bracing, which one to choose? A: Depends on building layout. X-type cross bracing is the most cost-effective if no door/window openings are needed in bracing zones. Select Inverted V or K-type bracing for areas requiring access openings, with 20%–40% extra steel consumption.
Q: What is the recommended spacing for column bracing? A: 30–45m for crane-free workshops. For buildings with overhead cranes, locate column bracing at the center of temperature sections.

Next Step: Factory Audit

You have confirmed the bracing type and technical parameters. Now the real risk moves to the factory floor. Read Article 2: Steel Structure Factory Audit – 3 Critical Checks Before You Order — link to be added.
