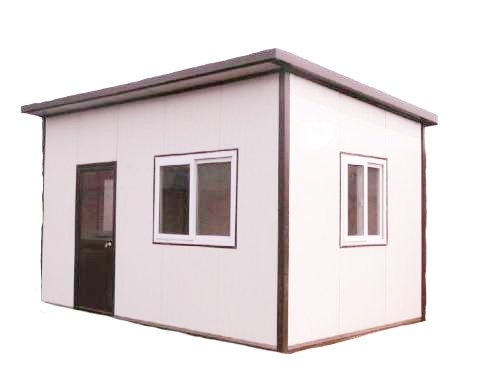

Color Steel Prefabricated Mobile Panel House Water Leakage Causes & Waterproof Handling Solutions

Color steel prefabricated mobile panel houses are valued for their versatility, easy assembly and disassembly, long service life, and high turnover rates. However, water leakage remains a common headache. Below, we walk through the typical trouble spots and practical fixes based on field experience.

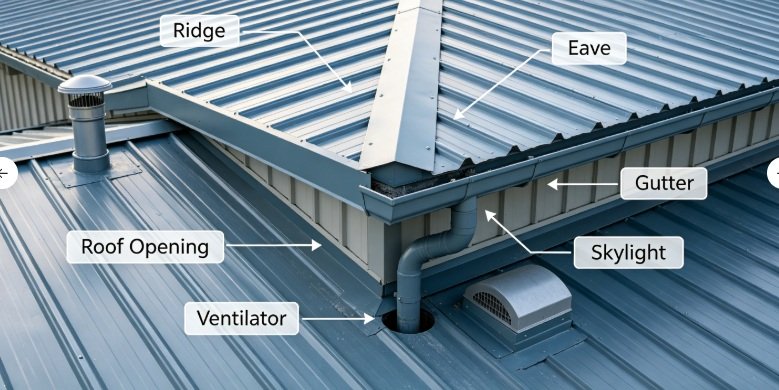

1. Ridge leaks
The ridge is a frequent culprit. Problems often arise when the ridge cap is too narrow or the roof slope too gentle to shed water effectively. Vertical overlaps without sealant or silicone leave gaps, while rivets used for longitudinal laps can fracture under thermal stress, opening up paths for water. Another issue is the missing or ill-fitted plug between the ridge cap and the roof panel – if it's not properly placed, it can shift or fall out.
To tackle this: widen the ridge cap and, if possible, increase the slope. Seal all overlaps with cement mortar or silicone. Replace any broken rivets, and make sure the plug matches the panel profile – apply clay or silicone both above and below it during installation.

2. Eave panel leaks
Leaks at the eaves usually trace back to improper installation. The outer roof panel may lack foam plugs at its lower edge, or it hasn't been pulled down at the required angle. Also, if the outer wall panel is too short and no waterproof trim is added at the eave, rain can easily work its way in.
The fix: when fitting the roof panel, install foam plugs simultaneously and pull the panel downward at about 30 degrees. Add eave trim as needed, following the actual site conditions.

3. Gutter section leaks
Gutters in steel structures tend to be shallow, and there's often no continuous waterproofing between the gutter and the roof. Welded seams on the inside may have pinholes or gaps. Undersized gutters and downspouts – relative to the roof slope and length – can cause overflow, and missing end head plates allow water to backflow into the building.
What you can do: deepen the gutter so that rainwater stays below the lap level. Weld inner joints and carry out a water test – re-weld any spots that weep. Size gutters and downspouts based on calculated roof drainage. Install end head plates, and build the roof panels exactly to the specified length.

4. Leaks around roof openings (fans, vents, etc.)
Openings pose a double challenge: they must look neat and stay watertight. The right solution depends on the opening shape and the panel type. Typical failures include: the opening not flashed per design, steel plugs set without sealant or silicone, insufficient clearance around the opening that traps water, unsealed lap joints, and lack of internal supports that cause low-lying ponding.
To prevent this: follow the drawings meticulously and use sealant generously. Ensure the clearance around fans is adequate for drainage. After cutting openings, waterproof both the wall and roof interfaces. Add extra purlins or angle steel around large openings to reduce deflection. During installation, keep all flashing tight and pitched so water flows away freely.

5. Leaks at air-storage units (roof monitors/ventilator housings)
Where an air-storage unit meets the roof, the junction is vulnerable. Common omissions: no foam plug at the lower edge, no sealant along the longitudinal lap, unsealed column openings, and hidden defects from fabrication or erection.
Solutions: lay foam plugs before the edge trim goes on, and seal all laps with mortar or plugs secured by stitching. Pull the roof panel up before installing the unit. Waterproof every opening in the air-storage structure, and double-check both installation quality and sealing details.

6. Leaks at skylight (lighting) panels
Skylight waterproofing is critical to the overall roof integrity. Often, the sealant applied under the skylight and the so-called waterproof screws become weak points. If the skylight profile doesn't match the roof panel – for instance, its ribs are higher – the tight seal can create a pressure differential, drawing capillary water sideways into the roof. Short longitudinal overlaps, aged mastic, and missing sealant between the skylight base and the steel panel also invite trouble.
To resolve this: choose a skylight panel that matches the roof contour. Apply adequate sealant and use proper fasteners. Extend the overlap length and renew any hardened mastic. Fill the gap between the skylight base and the steel panel with flexible sealant. Stick to the manufacturer's installation instructions to avoid pressure-related wicking.
