1. Column‑Base Selection Decision‑Tree and Three‑Code Overview

Before commencing any overseas steel‑structure work, confirm the applicable design code. Please refer to the workflow below.

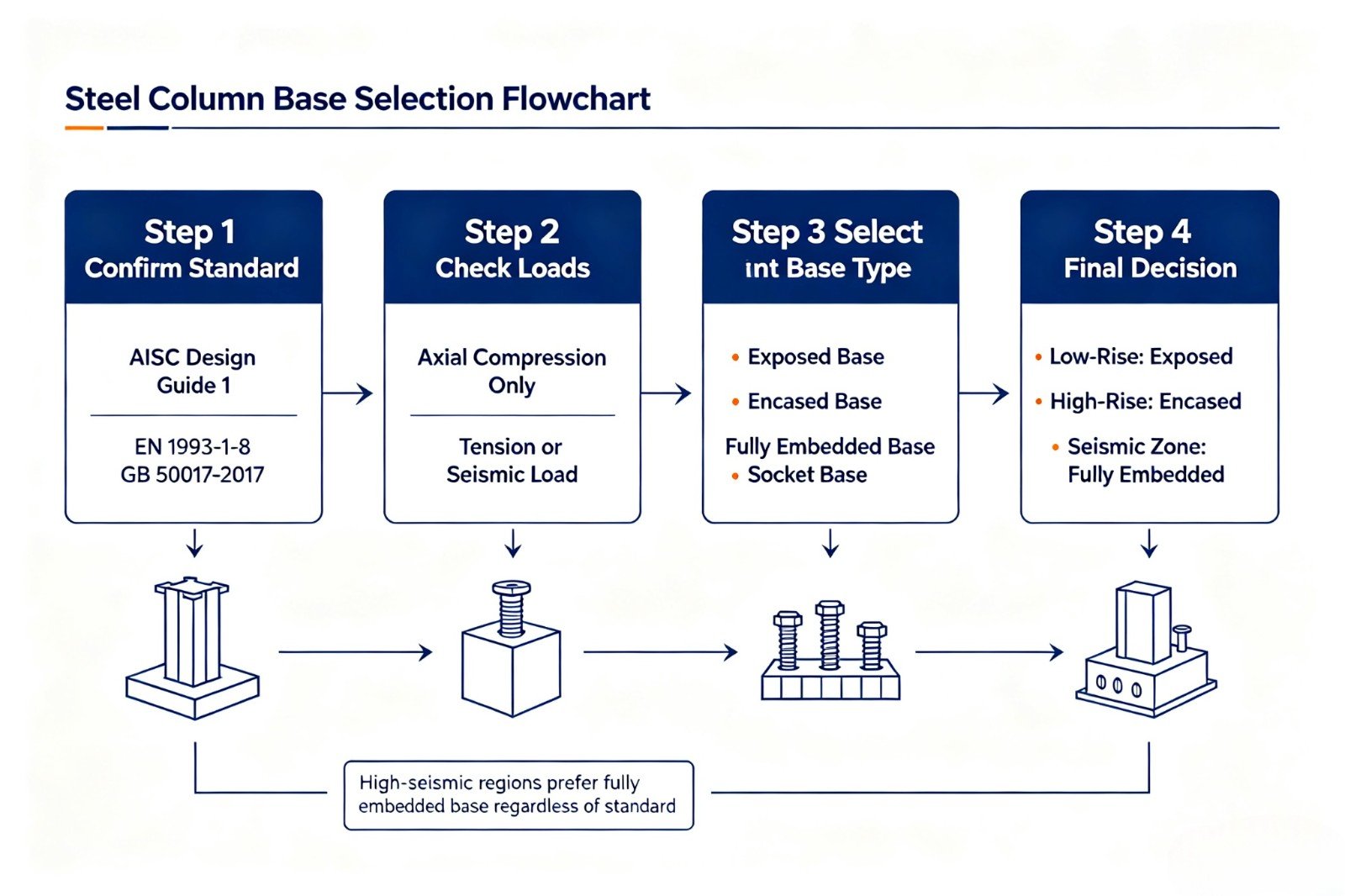

Step 1: Confirm the governing standard

• AISC: AISC Design Guide 1

• EN: EN 1993‑1‑8

• GB: GB 50017‑2017

Step 2: Analyze load conditions

• Pure axial compression and low‑seismic‑risk zone → Adopt exposed‑type column base (cost‑effective option)

• Tensile loads or seismic loading present → Proceed to Step 3

Step 3: Determine structural configuration per code requirements

• AISC: Design for anchor‑bolt tension and concrete bearing capacity; embedment depth ≥ 12d (with end plate) or ≥ 25d (plain hook end)

• EN: Classify connections as rigid, semi‑rigid or pinned; minimum embedment ≥ 15d for anchored end‑plate fixings

• GB: High‑rise buildings require encased or fully‑embedded bases; embedment depth ≥ 2.5 times the column section depth

Step 4: Final selection based on building height and seismic intensity

• Low‑rise, non‑seismic sites: Exposed base plate

• High‑rise seismic‑prone buildings: Encased or fully‑embedded column base

• Super‑high‑rise structures in high‑seismic zones: Fully‑embedded base mandatory

Key Tip for Overseas Projects

Deploy fully‑embedded column bases for high‑seismic‑risk regions including Chile, New Zealand, Japan and Indonesia, no matter which design standard is adopted.

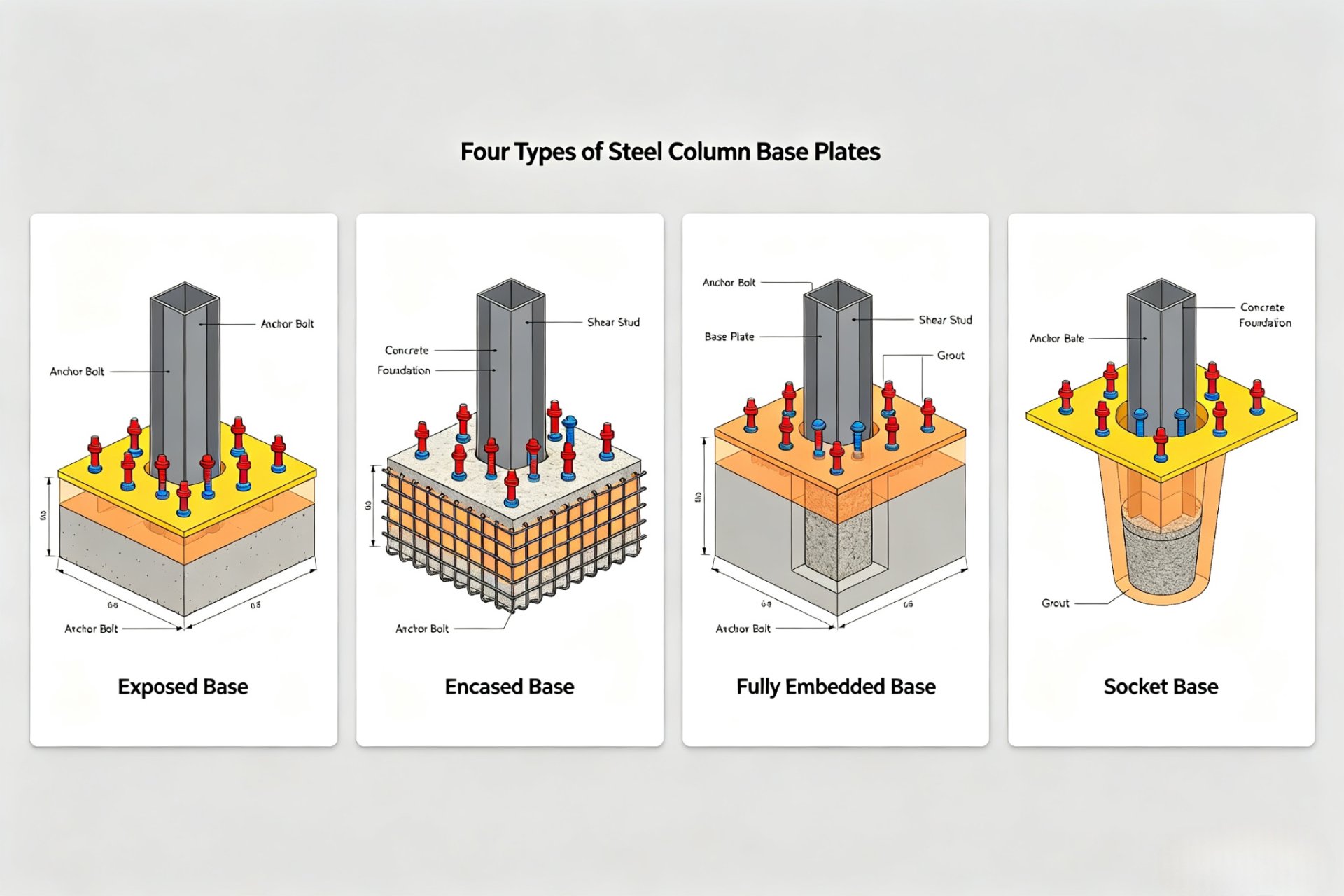

2. In‑Depth Breakdown of Four Common Column‑Base Types (Globally‑Recognized Classification)

2.1 Exposed Base Plate

Code‑based designation comparison

• AISC: Exposed Column Base

• EN: Base plate with holding‑down bolts

• GB: Exposed‑type column base

General characteristicsThe steel column bears directly on top of the concrete foundation and is fastened with anchor bolts. Levelling is achieved by post‑pouring grout.

Comparison of key construction parameters

Applicable scenarios: low‑rise buildings, non‑seismic zones, pinned connections or mildly rigid end restraints.

2.2 Partially‑Encased Column Base

Code designation

• AISC: Partially Embedded Column Base

• EN: Encased base

• GB: Encased‑type column base

General characteristicsThe lower column segment is encased in reinforced concrete. Load transfer is accomplished through concrete bond force and shear studs.

Key code‑specific requirements

• AISC: Concrete encasement height ≥ 1.5 times the column width; shear studs are mandatory

• EN: Design as composite structure; steel‑to‑concrete bond strength ≥ 0.3 MPa

• GB: Encasement height ≥ 2.0 times the column depth, minimum concrete cover thickness 160 mm

2.3 Fully‑Embedded Column Base

Code designation

• AISC: Fully Embedded Column Base

• EN: Embedded base

• GB: Fully‑embedded‑type column base

General characteristicsThe steel‑column bottom segment is sunk directly into the foundation pile cap. This configuration delivers maximum rigidity and superior earthquake resistance.

Minimum embedment‑depth comparison

Overseas‑project Reminder

When designing to AISC codes, the pile‑cap thickness for embedded bases is generally required to exceed 1.2 m. Switch to the encased alternative when foundation depth is constrained.

2.4 Socket Base

Code designation

• AISC: Socket base

• EN: Socket base

• GB: Insert‑type cup‑foundation base

Predominantly deployed for single‑storey factory buildings. The steel column slots into a pre‑cast foundation socket and is secured with poured grout. Requirements show minimal variation between the three international specifications.

3. Hands‑on Calculation Case: AISC versus GB Base‑Plate Computation

Chinese contractors working abroad frequently ask how much difference exists between AISC and GB computed plate thickness. The following practical case demonstrates both calculation workflows.

Design Conditions

• Steel section: W14×176 (A992) / Equivalent HW400×400×13×21 (Q355B)

• Factored axial load N = 3800 kN (approximately 854 kips)

• Foundation concrete: f'c = 27.6 MPa (AISC) / Grade‑C30 concrete, fc = 14.3 MPa (GB)

• Anchor bolts: 4‑off M30 (A36 for AISC design; Q235‑B under GB)

• Connection type: pinned exposed‑style column base

Step 1: Compute required base‑plate area

Note: φ = 0.65 stands for the AISC strength‑reduction factor. GB adopts separate partial safety factors for material properties.

Conclusion: Under identical loading conditions, the GB‑required plate area is roughly 25 % larger than the AISC requirement, a consequence of divergent reliability‑limit‑state design philosophies.Selected plate dimensions: 550×550 mm (AISC); 600×600 mm (GB).

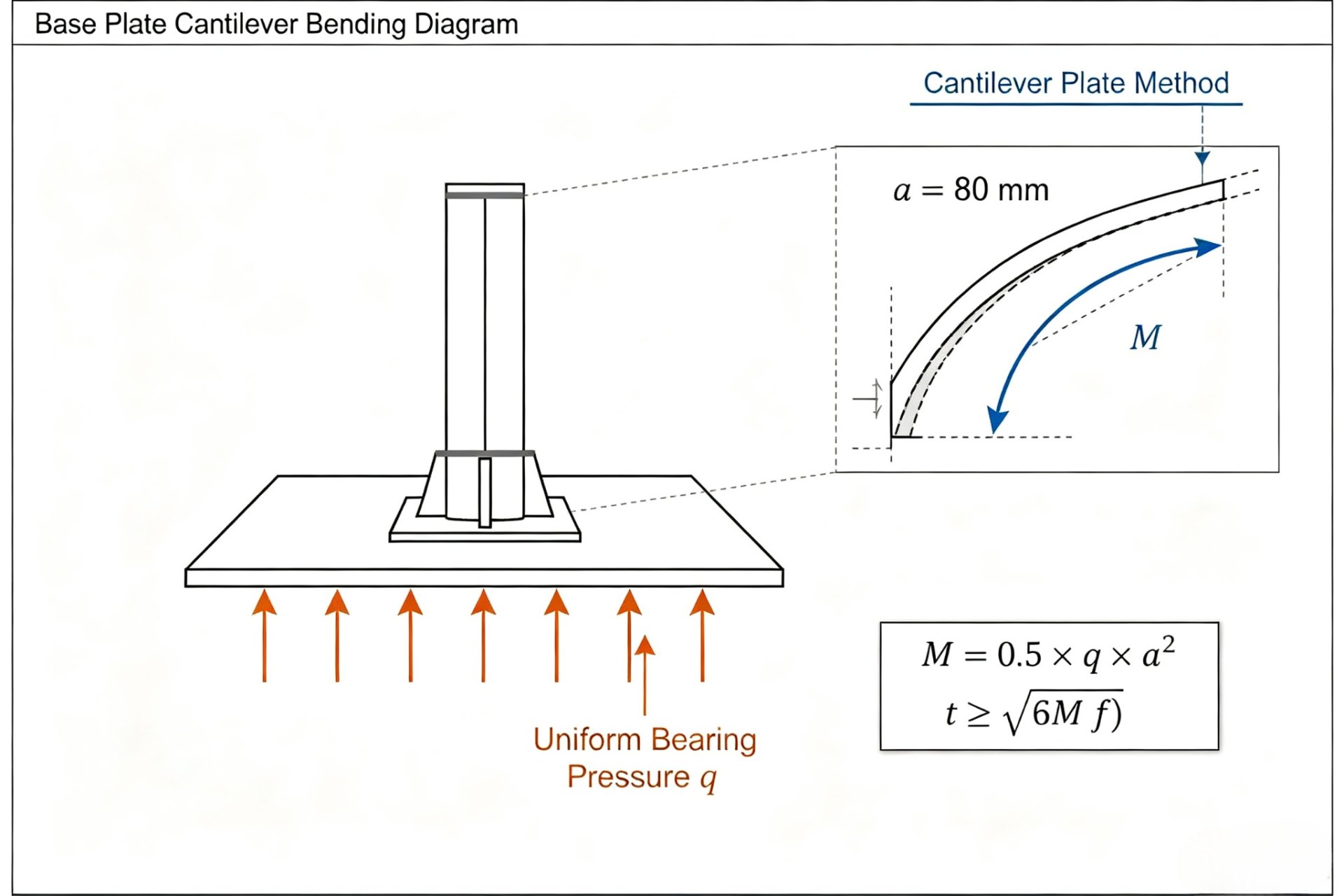

Step 2: Base‑plate thickness by cantilever‑beam approach

Cantilever overhang length a = 80 mm for both standards. Uniform upward concrete bearing pressure is calculated separately.

AISC Workflow

Uniform pressure q = 3800×10³ ÷ 302,500 = 12.56 N/mm²Bending moment M = 0.5 × q × a² = 0.5 × 12.56 × 80² = 40,192 N·mm per millimetre stripYield strength of A36 steel Fy = 248 MPaMinimum plate‑thickness formula:t ≥ √(4M ÷ Fy) = √(4 × 40192 ÷ 248) = √648.3 = 25.5 mm

GB Workflow

Uniform pressure q = 3800×10³ ÷ 360,000 = 10.56 N/mm²Bending moment M = 0.5 × 10.56 × 80² = 33,792 N·mm per‑mm stripDesign bending strength for Q355‑B f = 305 MPat ≥ √(6M ÷ f) = √(6 × 33792 ÷ 305) = √664.7 = 25.8 mm

Calculated minimum thickness values are comparable. A nominal thickness of 30 mm is adopted in both cases after rounding‑up.

Step 3. Final Specification Selection

Commentary

We followed GB construction requirements for this project, as on‑site work is managed by Chinese contractors and local material‑supply chains are optimized to national standards. For standalone overseas builds in Southeast Asia, follow AISC specifications to cut required foundation‑excavation depth and construction expense.

4. Three Costly Mistakes in Anchor‑Bolt and Shear‑Resistance Design (Common Overseas‑site Errors)

Mistake 1: Uniformly adopting the 25d embedment‑depth rule

Different standards define distinct embedment criteria:

• AISC: 12d with end‑plate anchorage, or 25d without end plates

• EN: 15d for end‑plate anchored bolts, further reduction permitted with mechanical anchorage

• GB: General requirement 25d; reduced to 15d when fitted with bearing end‑plates

Practical overseas tip: When foundation thickness is limited under AISC‑governed contracts, install anchor end‑plates and shorten embedment from 750 mm down to 360 mm for M30 bolts, lowering foundation‑work expenditure.

Mistake 2: Relying on anchor bolts to resist horizontal shear

Many contractors subject anchor bolts to combined tension and shear. Anchor bolts deliver poor shear capacity, and combined loading triggers premature brittle failure.

Correct practiceInstall a shear lug once the horizontal shear V exceeds 0.4 × N (compressive axial‑load). Shear lugs consist of steel plates or rolled‑steel profiles welded to the plate underside. Perform bearing‑capacity checks between the shear lug and surrounding concrete, and never count on anchor‑bolt shear resistance.

Mistake 3: Deploying low‑strength post‑pouring mortar

Ordinary M30‑grade mortar frequently crushes under base‑plate bearing stress. Mandatory grout‑strength requirements are listed below:

Best practice: Always specify non‑shrink grout rated C60 or above, irrespective of your governing building standard.

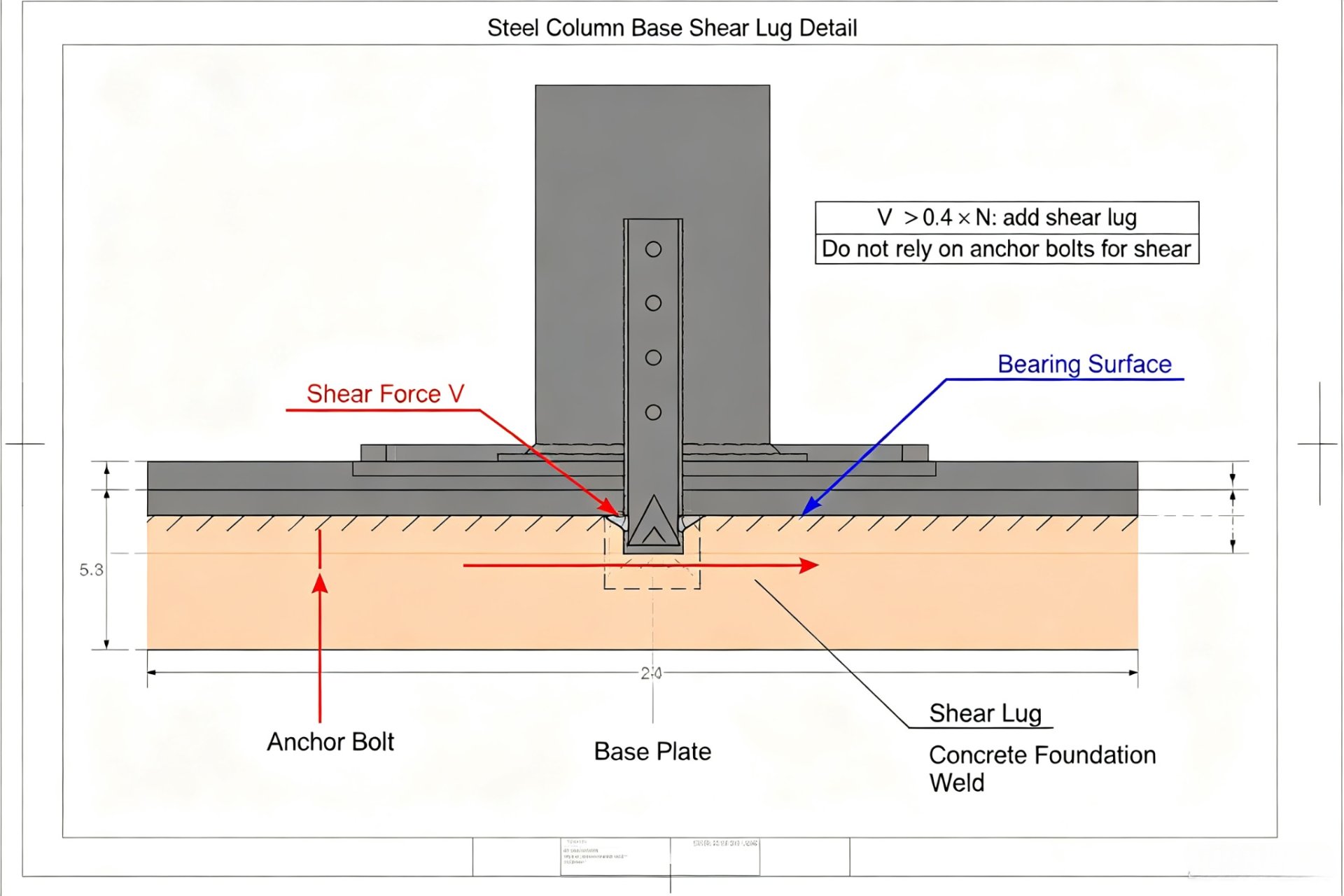

Graphic RequirementFigure 3: Construction detail of base‑plate shear lug

Display the welded connection between base plate and shear lug plus concrete bearing surfaces

5. Seismic‑Resistant Design: Differences in the “Strong Column, Strong Base‑Joint” Principle between AISC and GB

5.1 Core philosophy comparison

5.2 Quick‑reference chart for seismic‑prone international construction sites

Critical Advice

For construction in high‑earthquake‑risk territories, select a fully‑embedded column‑base assembly, reinforced foundation stirrups and shear‑stud connectors under every building code.

6. Six Golden Construction Rules for Overseas Projects

Rule 1: Precision control for pre‑embedded anchor bolts

• Tolerance: ±3 mm (AISC), ±2 mm (GB)

• Use fabricated steel jigs to fix bolt groups rather than simple rebar ties

• Survey bolt coordinates before, during and after concrete pouring

• Offset within 6 mm can be compensated with enlarged base‑plate holes and reinforcing washers (AISC allowance)

Rule 2: Controlled post‑grouting procedure

• Grout‑layer thickness 40‑60 mm (consistent across international standards)

• Adopt non‑shrink high‑strength grout (≥ C60 / 5000 psi)

• Pour grout unilaterally until material flows from the opposite opening; rely on self‑levelling properties, avoid mechanical vibration

• Protect fresh grout against shock for 24 hours; implement thermal insulation when ambient temperature drops below 5 °C

Rule 3: Welding and bolt‑torque sequence

1. Position the steel‑column base and fasten anchor‑bolts to 50 % of target torque

2. Correct vertical alignment by theodolite readings along two orthogonal axes

3. Apply full specified torque to anchor bolts

4. Fabricate all base‑plate stiffener welds

5. Carry out base‑plate grouting

Never weld stiffeners before tightening anchor bolts, which causes irreversible bolt misalignment.

Rule 4: Anti‑corrosion treatment, essential for coastal humid environments

• Exposed bases: 80‑μm‑thick zinc‑rich epoxy primer, plus fire‑resistant coating matching column‑body requirements

• Buried embedded sections: Remove rust and oil, no surface paint (to preserve steel‑concrete bond strength)

• Marine‑climate builds: Add 2–3 mm corrosion allowance on plate thickness

Rule 5: Special AISC‑code construction requirements

• Install ASTM F436 hardened washers underneath every nut

• All column‑base welded connections shall satisfy AWS D1.1 welding‑code criteria

• Supply torque‑coefficient inspection records for high‑strength bolts

Rule 6: On‑site documentation management

International construction supervisors routinely demand these documents:

1. Material‑test reports (MTR) for anchor bolts

2. Welding‑procedure specifications and procedure‑qualification records (WPS / PQR)

3. Compressive‑strength certificates for non‑shrink grout

4. Torque‑application log for finished anchor‑bolt tightening

7. FAQ: 8 Top Concerns Raised by International Purchasers

Q1: I am building in Southeast‑Asia under AISC standards, which base type should I select?

A: Indonesia and the Philippines suffer intense seismic activity (Level‑8 to 9). Choose a fully‑embedded base with embedment ≥ 1.5 times your column depth and fitted shear studs (AISC Design Guide 1). Switch to the encased‑type base (encasement height ≥ 1.5×column width) when foundation depth falls below 1.2 m.

Q2: Which code yields more conservative design outcomes, AISC or GB?

A: GB requires approximately 25 % larger base‑plate bearing‑area. AISC imposes stricter ductility and deformation checks for anchor‑bolts under major earthquakes. Follow local contractual specifications; there exists no universally superior standard. Adopt GB for domestic Chinese projects and the specified international standard for overseas builds.

Q3: When are base‑plate stiffening ribs mandatory and how are they sized?

A: Fit stiffeners whenever the computed base‑plate thickness reaches 40 mm or large bending moments appear at column‑flange connections. Stiffener thickness ≥ 0.7 × base‑plate thickness, stiffener height ≥ one‑third of the column depth. Perform full fillet welding between stiffeners, column flanges and the base plate, with weld leg size ≥ 0.7 times stiffener thickness.

Q4: Can exposed rigid column‑base connections be used in Zone‑7 seismic‑intensity zones?

A: Under GB‑50017 rules, exposed rigid bases are permitted on condition that base‑joint capacity reaches 120 % of the column plastic capacity, anchor bolts are Q345‑B or superior‑grade steel, and base‑plate thickness is 30 mm minimum.AISC‑based projects located within SDC Category‑C or higher seismic zones discourage exposed rigid bases and recommend embedded configurations.

Q5: Why is the 40‑60 mm grout‑layer thickness widely specified?

A: Three primary reasons:

1. Accommodate foundation elevation construction tolerance (±10 mm)

2. Distribute compressive load evenly and eliminate localized stress peaks

3. International‑code consensus; carry out multi‑layer pouring when grout depth exceeds 60 mm.

Q6: How do I choose base‑plate steel for conditions down to −30 °C?

A: Guard against steel brittle fracture in cold environments:

• AISC projects: ASTM A572 Grade 50 steel qualified for Charpy impact testing at −45 °C

• GB‑standard builds: Q355‑D (−20 °C impact‑tested) or Q355‑E (−40 °C)

• Deploy low‑hydrogen welding electrodes and complete weld‑metal impact testing.

Q7: What purpose does the base‑plate vent hole serve and what diameter is required?

A: Vent holes (Φ25‑30 mm, located at the plate high‑point or centre) expel trapped air during grout pouring. Air pockets create hollow voids that induce unexpected bending stress and possible plate rupture.

Q8: Are there special column‑base requirements for prefabricated container houses?

A: Wind‑load overturning creates substantial uplift force on container‑house foundations.

1. Adopt cost‑efficient exposed‑type bases

2. Increase bolt quantity to 6‑8 anchor‑bolts (4‑bolt standard for conventional frames)

3. Observe 25d (GB) or 12d (AISC with end‑plate anchorage) embedment

4. Install stiffening ribs to withstand impact loads from container hoisting operations.

8. Our Services: One‑stop Supply of Complete Column‑Base Assemblies

As a steel‑structure exporter with 15‑year‑long industry experience, we supply customized column‑base components for worldwide clients.

Product Portfolio

• Custom‑cut base plates (10‑100 mm thickness, Q355‑B / A572 Gr.50 / A36 material grades)

• Anchor bolts M16‑M100, available with end‑plates or hooked ends; hot‑dip‑galvanized or Dacromet surface‑treatment options

• Fabricated shear lugs from plate or rolled‑steel profiles engineered according to AISC, EN or GB requirements

• Laser‑cut stiffener plates with ±0.5‑mm machining tolerance

• Full base‑part kits plus installation guidance for modular container‑type buildings

Global Export Footprint

Our goods are delivered to over 30 nations, among them North‑America, Australia, New Zealand, Singapore, Indonesia, the Philippines, Kenya and the United‑Arab‑Emirates.Available certification packages:

• EN 10204 3.1 material inspection certificates

• Dimensional‑inspection reports, UT and MT non‑destructive testing

• WPS and PQR welding qualification documents

• Hot‑dip‑galvanized coating‑thickness test certificates




Request Technical Consultation and Quotation

When planning your international steel‑structure build and requiring guidance on code‑compliant column‑base specification, forward your project parameters (building height, seismic classification, foundation constraints and governing standard). Our engineering department will deliver your custom‑made technical package within 48 hours:

1. Code‑comparison‑based base‑type recommendation report

2. Simplified base‑plate calculation document with dimension and thickness suggestions

3. Component list and formal price quotation
