Quick Answer: Rigid vs. Pinned Column Base—Which One Do You Need?
The short answer: Choose a rigid (fixed) base when your structure needs to resist significant lateral loads (wind, seismic) or support overhead cranes. Choose a pinned (hinged) base for low-rise buildings without cranes where foundation cost is the primary concern.
For procurement professionals: The choice directly impacts foundation cost (rigid bases require 35–60% larger foundations), fabrication complexity, lead time, and total project cost.
What This Guide Covers
For engineers, you'll learn:
The fundamental difference between rigid and pinned column bases
Visual identification methods (bolt layout + stiffener check)
Side-by-side technical comparison
Decision matrix for structural design
For procurement professionals, you'll learn:
Cost implications of each connection type
What to specify in your RFQ
How to verify supplier quality and compliance
Lead time and fabrication considerations
Part 1: Understanding the Core Difference
What Is a Rigid (Fixed) Column Base?
A rigid column base (also called a fixed base) transmits axial force, shear force, AND bending moment from the steel column into the foundation. The connection is stiff enough that column end rotation is essentially zero under design loads.
Common rigid base configurations:
Exposed column base : Column with base plate anchored to concrete foundation
Embedded column base : Column embedded directly into concrete
Encased column base : Column base encased in reinforced concrete

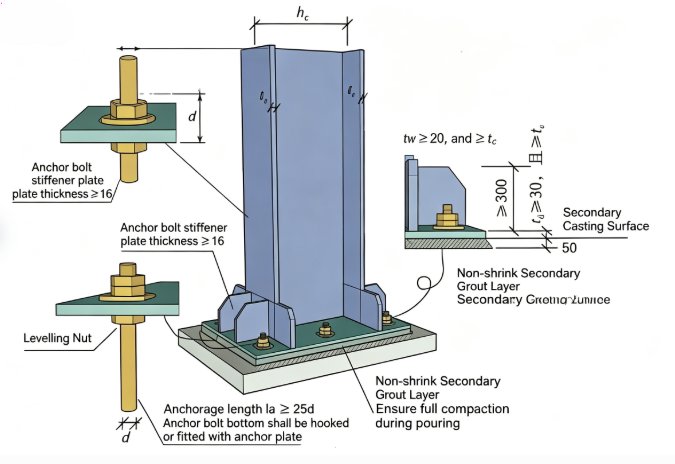

Typical rigid base detailing:
6–8+ anchor bolts arranged outside the column flanges
Thick base plate with stiffener plates at column flanges
Bolts designed to resist tension from bending moment
What Is a Pinned (Hinged) Column Base?
A pinned column base (also called a hinged base) transmits axial force and shear force ONLY. Bending moment is assumed to be zero, allowing the column end to rotate freely.

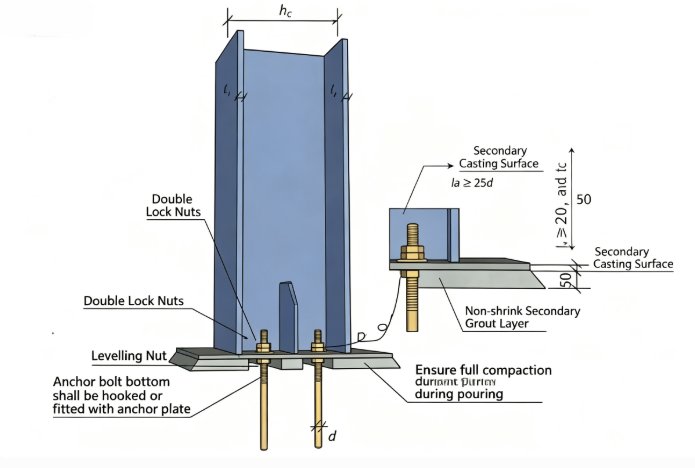

Typical pinned base detailing:
2–4 anchor bolts arranged within the column profile
Thin base plate without stiffeners
Bolts serve primarily as locating devices during erection
What distinguishes a rigid base from a pinned base is whether the connection can transmit bending moment without excessive deformation.
According to Eurocode 3 EN 1993-1-8, a joint is classified as nominally pinned if its moment resistance is not greater than 25% of the full-strength joint requirement.
Part 2: Visual Identification—Rigid vs. Pinned
| Feature | Pinned Base | Rigid Base |
|---|---|---|
| Bolt Layout | Bolts within column profile | Bolts outside column flanges |
| Number of Bolts | 2–4 | 6–8+ |
| Base Plate | Thin, no stiffeners | Thick, with stiffener plates |
| Bolt Function | Locating devices | Resist tension from moment |
![]()
| Feature | Rigid (Fixed) Base | Pinned (Hinged) Base |
|---|---|---|
| Moment Transfer | Yes | No (assumed zero) |
| Forces Transmitted | Axial + Shear + Moment | Axial + Shear only |
| Bolt Layout | Outside column, 6–8+ bolts | Near centroid, 2–4 bolts |
| Stiffeners | Required | Not required |
| Base Plate Thickness | Thick (designed for bending) | Thin (minimum) |
| Foundation Size | 35–60% larger | Smaller |
| Lateral Drift Control | Excellent | Limited |
| Column Effective Length | Shorter (0.7L) | Longer (1.0L) |
| Fabrication Complexity | Higher | Lower |
| Relative Cost | Higher | Lower |
| Typical Applications | Cranes, high-rise, seismic zones | Low-rise, no crane, temporary |
| Condition | Recommended Base | Procurement Implication |
|---|---|---|
| No crane, single story, braced frame | Pinned | Lowest cost, fastest fabrication |
| No crane, single story, unbraced frame | Rigid | Requires stiffener plates, more bolts |
| With crane (any) | Rigid | Larger foundation, heavier base plate |
| Height < 15m, low seismic | Pinned | Cost-effective with bracing |
| Height > 15m, any seismic | Rigid | Higher fabrication precision required |
| Sensitive equipment / tight drift limits | Rigid | Tighter tolerances in fabrication |
| Temporary or relocatable structure | Pinned | Simpler, faster erection |
When sourcing column base components from a steel structure fabricator, include these specifications in your RFQ:
1. Connection Type
Clearly specify: Rigid or Pinned
If rigid: specify design moment and required rotational stiffness
2. Material Specifications
Steel grade (e.g., ASTM A36, A992, Q235B, Q355B)
Bolt grade (e.g., ASTM A325, A490, Grade 8.8, 10.9)
3. Dimensional Requirements
Column section dimensions
Base plate thickness and dimensions
Bolt hole sizes and locations
Stiffener plate details (if rigid)
4. Quality Requirements
Welding standard (e.g., AWS D1.1, EN 1090)
NDT requirements (UT, MT, RT)
Surface preparation and painting specification
5. Documentation
Mill Test Certificates (MTC)
Welding procedure specifications (WPS)
Inspection reports
As-built drawings
| Capability | Details |
|---|---|
| CNC Cutting | Plasma, laser, and flame cutting up to 0.3-600mm thickness |
| Welding | Automatic and manual welding per AWS D1.1 / EN 1090 |
| Surface Treatment | Shot blasting, primer and topcoat painting |
| Assembly | Full shop assembly and fit-up before shipment |
| Inspection | In-house QC + third-party inspection (SGS, TUV, BV) accepted |
ISO 9001:2015 – Quality management system
ISO 3834 – Welding quality requirements
EN 1090 – CE marking for structural steel
AWS D1.1 – American welding standard
Full traceability – From raw material to finished product
We have successfully delivered steel structure components to projects across:
Southeast Asia – Industrial buildings, warehouses
Middle East – Commercial and industrial facilities
Africa – Infrastructure and mining projects
Europe & Americas – High-standard structural components
“JX steel structure delivered our column base plates on time with excellent quality. The shop drawings were accurate, and third-party inspection passed without any issues.”
— Project Manager, European
“We have been sourcing steel structural components from JX steel structure for three years. Consistent quality, reliable delivery, and competitive pricing.”
— Procurement Director, South American
How to avoid: Ensure the detailing matches the analysis assumption. If modeled as rigid, the base plate must have stiffeners, sufficient thickness, and bolts outside the flanges.
Mistake 2: Overlooking the Foundation‘s Capacity
How to avoid: Design the foundation for the full moment and uplift forces from the rigid base.
Mistake 3: Ignoring Shear Transfer
According to GB 50017-2017 Clause 12.7.4, anchor bolts should not be relied upon to resist horizontal shear. Shear should be resisted by friction (coefficient = 0.4) or a shear key.
How to avoid: Always check shear transfer. Specify shear key in RFQ if friction is insufficient.
Mistake 4: Over-Specifying Rigid Bases
How to avoid: Let structural analysis guide your decision. If base moment is small (<25% of column capacity per Eurocode 3), a pinned base is appropriate.
Project: 9.8m-tall steel frame building, 7-degree (0.15g) seismic zone.
Rigid base: Required M60 anchor bolts, foundation depth 2.0m.
Pinned base + bracing: M24 anchor bolts, foundation depth 0.8m—60% reduction.
Result: Pinned base + bracing solution was significantly more economical while meeting all structural requirements.
Q1: Can I use a pinned base in a seismic zone?
A: Yes, but with caution. Pinned bases increase lateral drift. In high seismic zones, rigid bases are generally preferred.
Q2: How do I know if my base is truly pinned or rigid?
A: Check bolt layout (inside vs. outside the flange), base plate thickness, and presence of stiffeners. Consult design codes or a licensed engineer if in doubt.
Q3: Which is more expensive—rigid or pinned?
A: Rigid bases are generally more expensive due to larger foundations, more anchor bolts, stiffeners, and thicker plates. However, they can reduce member sizes. Total cost depends on the project.
Q4: What‘s the rule of thumb for bolt placement?
A: Bolts within the flange = pinned; bolts outside the flange = rigid. This is a guideline—the connection must be properly detailed to achieve the assumed behavior.
Q5: What is your typical lead time for column base plate fabrication?
A: Our standard lead time is 2 – 4 weeks from drawing approval. Rush orders can be accommodated—please contact us for urgent requirements.
Q6: Do you provide shop drawings and 3D models?
A: Yes. We provide detailed shop drawings and can supply 3D models (Tekla, AutoCAD, or other formats) upon request.
Q7: How do you ensure quality control during fabrication?
A: We have a full in-house QC team, follow ISO 3834 welding quality requirements, and accept third-party inspection (SGS, TUV, BV) at any stage.
Q8: What are your payment terms for international orders?
A: Standard terms: 30% deposit + 70% balance before shipment. Other terms can be negotiated for long-term partners.
✅ Structural analysis model assumptions verified
✅ Bolt layout matches the assumed connection type
✅ Base plate thickness adequate for design forces
✅ Stiffeners specified where required (rigid)
✅ Foundation designed for full moment (rigid) or zero moment (pinned)
✅ Shear transfer checked (friction or shear key)
✅ Anchor bolt embedment depth sufficient
✅ Grout layer specified (30–50mm)
✅ Construction detailing matches the analysis model
[Click here to download the PDF checklist]
