In this guide: 7 data-backed advantages | Steel vs. concrete comparison | 2026 design standards | South America capability showcase | Free supplier checklist at the end.
Author: Mr. Ma, P.E., Senior Structural Engineer | JX | 15+ years in steel structure design, fabrication, and project delivery across 20+ countries

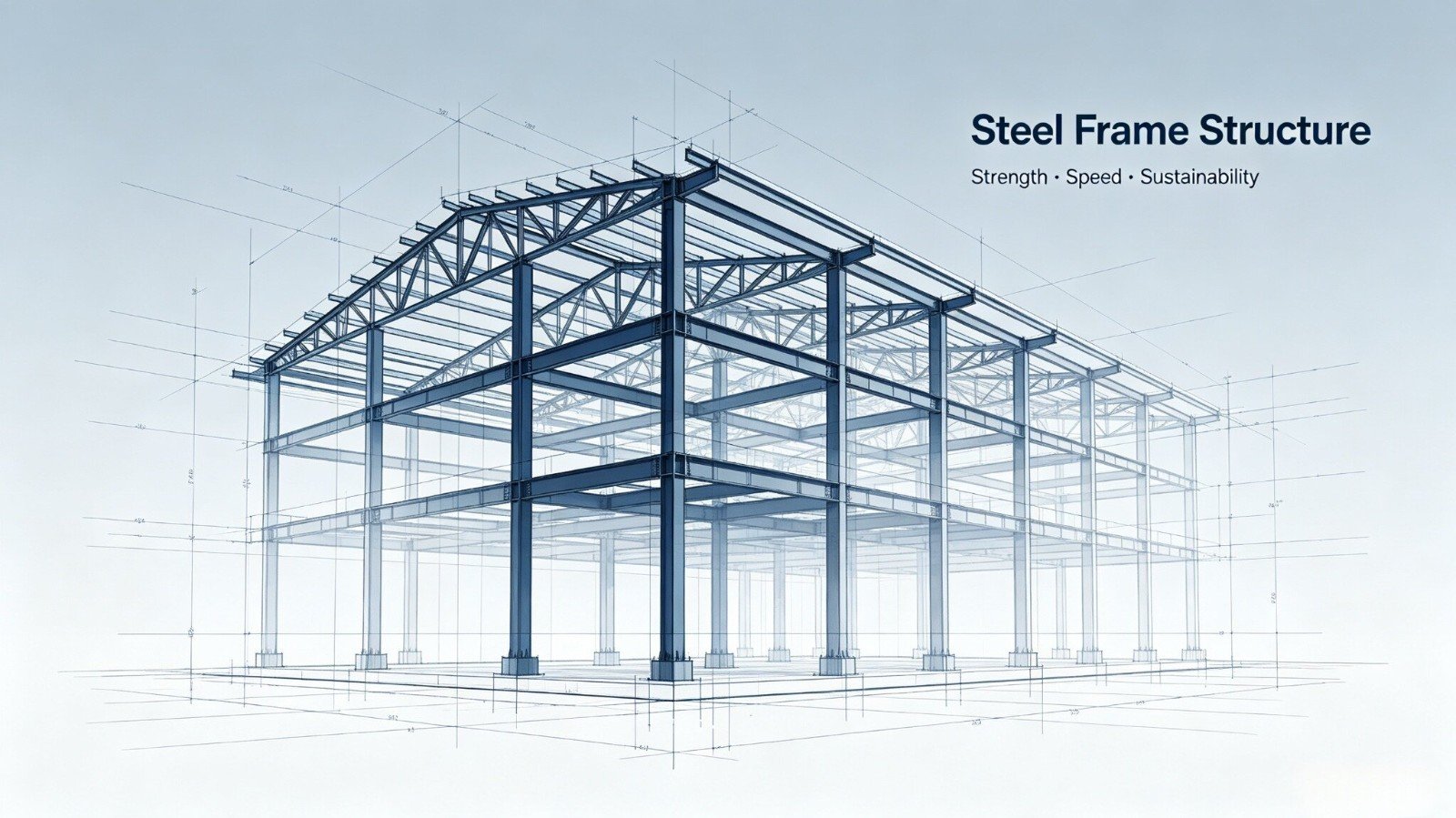

A steel frame structure is a three-dimensional load-bearing system. It uses vertical columns and horizontal beams connected by welding or bolting. The system carries all gravity loads (dead, live, snow, equipment) and lateral loads (wind, seismic). It transfers these loads safely to the foundation.
Think of it as the building's skeleton—supporting floors, walls, roofs, and everything inside.
Four functional layers of a complete steel framework:
Primary members – Columns and primary beams/rafters; define the structural bay grid
Secondary members – Purlins (roof), girts (walls), floor beams spanning between primary members
Lateral load-resisting system – Bracing, moment-resisting frames, or shear walls for wind and seismic forces
Connections and base – Beam-to-column connections, splices, and base plates with anchor bolts
Who Needs Steel Frame Structures? Key Industry Pain Points Addressed
| Target Audience | Primary Pain Points | How Steel Framing Solves Them |
|---|---|---|
| Factory/Warehouse Developers | Long ROI timelines; inflexible layouts; high foundation costs | 90m clear spans maximize usable space; 40% lighter foundations; 30–40% lower total project cost |
| EPC Contractors | Site schedule delays; rework costs; labor shortages | 50% faster erection; ~5% factory-precision waste (vs. 15–25% on-site); fewer skilled workers needed on-site |
| Procurement Managers | Steel price volatility; inconsistent quality; delivery delays | Fixed-cost fabrication contracts; ISO-certified quality; just-in-time delivery planning |
| Modular Builders | Module weight limits; connection tolerances; transportability | High strength-to-weight ratio; precision CNC connections; easy bolt-assembly on-site |
Want to see which solution fits your project? Request a free 15-minute project assessment with our engineering team. No obligation, just expert advice.
7 Data-Backed Advantages of Steel Frame Construction
Steel delivers the highest strength-to-weight ratio of any building material. This reduces foundation load by up to 40%—cutting concrete volume and excavation costs.
Steel's ductility and flexibility make it exceptionally earthquake-resistant. A 2025 comparative study found steel frames achieve up to 41.28% greater cost-effectiveness than reinforced cement concrete (RCC) structures, with improved seismic performance due to lighter weight and uniformly distributed stiffness.
Steel arrives pre-fabricated and ready to assemble. A 12-month conventional project erects in 6–8 weeks once steel arrives. Overall project completion is up to 50% faster.
Material waste: ~5% (vs. 15–25% for concrete)
Clear-span capacity: Up to 90 meters column-free (concrete: ≤30m)
Life-cycle cost: 8–13% lower than concrete over building lifetime
Open interior spaces can be easily reconfigured as business needs evolve—without demolishing structural elements.
Steel is infinitely recyclable. The World Steel Association's 2025 Sustainability Charter now recognizes 34 steel organizations as Charter Members, with 93 companies reporting across 19 sustainability indicators.
Service life exceeds 50 years with minimal maintenance. Steel won't warp, rot, or succumb to pests.
Estimate your project cost in 5 minutes. Use our Steel Frame Cost Estimator Tool — compare steel vs. concrete for your specific site conditions.
Global Steel Frame Structure Market Size & Growth Forecast
The steel construction sector is experiencing robust, multi-segment growth. Here is the consolidated 2025–2031 outlook:
| Market Segment | 2025 Value | 2030/2031 Projection | CAGR | Key Driver |
|---|---|---|---|---|
| Structural Steel Fabrication | $150.20 billion | $200.30 billion (by 2031) | 4.28% | Rising adoption of automated CNC/robotic welding |
| Pre-Engineered Buildings (PEB) | $20.05 billion | $29.90 billion (by 2030) | 8.30% | Rapid industrialization in emerging economies |
| Global Steel Structures (Overall) | $124.72 billion | $161.03 billion (by 2030) | 5.20% | Urbanization and infrastructure renewal |
Regional insight: Asia-Pacific dominated the structural steel fabrication market with 43.44% share in 2025, driven by massive infrastructure spending in China, India, and Southeast Asia. The PEB segment's 8.3% CAGR significantly outpaces general construction growth, reflecting a structural shift toward factory-built solutions.
Types of Steel Framework Systems
Beams connect to columns with pinned connections (shear transfer only). Lateral resistance uses X-braces, V-braces, or K-braces in designated bays.
Best for: Multi-storey commercial, industrial, and logistics buildings where bracing fits non-intrusive bays
Rigid beam-to-column connections transfer both shear and bending moments—providing lateral resistance without diagonal bracing.
Best for: Buildings requiring open floor plans where bracing would obstruct functionality
Complete structural system—primary frames, secondary members, roofing, wall cladding—designed and fabricated in a factory to exact project specs.
Best for: Single-storey and low-rise industrial, logistics, commercial, and agricultural buildings
Not sure which system fits your project? Download our System Selection Guide — a side-by-side comparison with decision matrix.
Steel Frame vs. Concrete Frame: Side-by-Side
| Factor | Steel Frame | Concrete Frame |
|---|---|---|
| Construction speed | 6–12 weeks erection | 6–18 months on-site |
| Cost-effectiveness | Up to 41.28% greater | Baseline |
| Material waste | ~5% | 15–25% |
| Clear-span capacity | Up to 90 m | Typically ≤30 m |
| Seismic performance | Ductile, flexible, absorbs energy | Rigid, cracks under stress |
| Life-cycle cost | 8–13% lower | Higher |
Project Experience: South America Capability Showcase
The following project references represent project types we are fully capable of executing, based on our engineering team's expertise and successful track record in similar applications across global markets. For client confidentiality, specific client names and exact commercial terms are not disclosed.
Capability Reference 1: Port Facility Steel Structures — Peru (2025)
| Attribute | Detail |
|---|---|
| Project Type | Port conveyor system steel trestle and transfer station structure |
| Location | Ica Region, Peru |
| Steel Specification | ASTM A992 / A572 Grade 50 (US standard design) |
| Environmental Classification | C5-M (high-corrosion coastal environment) |
| Key Challenge | High corrosion resistance requirements; complex long-span truss fabrication |
Capability demonstrated: This reference reflects our expertise in multi-storey steel frame systems for mixed-use commercial developments, with design compliance to both US (AISC) and local seismic standards for the Andean region.
Technical deliverables we provide for such projects:
Seismic design per AISC 341-22 with site-specific response spectra analysis
Composite floor system design (steel deck + concrete topping)
Connection detailing for moment-resisting frames
BIM coordination for complex urban site logistics
| Attribute | Detail |
|---|---|
| Project Type | Steel structure warehouse and distribution center |
| Location | São Paulo State, Brazil / central Chile |
| Building Footprint | Approx. 2,000–5,000 m² per building |
| Structural System | Portal frame / H-shaped steel columns and beams |
| Key Challenge | Tropical/subtropical climate adaptation; high humidity and temperature variations |
Capability demonstrated: This reference showcases our capacity to deliver industrial steel buildings adapted to local climate conditions—including enhanced corrosion protection, thermal performance, and ventilation systems—with bilingual technical documentation (English/Portuguese or English/Spanish).
Technical deliverables we provide for such projects:
Climate-adapted design (thermal break detailing, condensation control)
Portal frame optimization for maximum clear-span utilization
Delivery logistics planning for South American ports and inland transport
Portuguese/Spanish translation of technical documentation
See our full capability portfolio. Request our project reference package — includes 20+ project descriptions across South American markets, with technical specifications and design approach summaries.
Primary standards:
AISC 360-22 – Specification for Structural Steel Buildings (non-seismic design)
AISC 341-22 – Seismic Provisions for Structural Steel Buildings
2027 edition of AISC 341 – Currently under public review (September–October 2025)
Key proposed updates for AISC 341-27:
Updated reference standards and materials specifications
New provisions for rod-braced diaphragms with special seismic detailing
Revised analysis requirements for complex structures
Revised column member requirements
New appendix on nonlinear response analysis
Practitioner note: The 4th Edition Seismic Design Manual now covers:
Adjusted width-to-thickness ratio limits
New provisions for ordinary truss moment frames
Improved cantilevered column guidance
Provisions for coupled composite plate shear walls (SpeedCore system)
EN 1993-1-1 – General rules and rules for buildings
EN 1993-1-4:2025/prA1:2026 – Stainless steel structures (supplementary rules for austenitic, duplex, and ferritic stainless steels)
EN 1993-1-9:2025/prA1:2026 – Fatigue design methods
EN 1993-1-7:2025 – Plate assemblies with elements under transverse loads
NA to BS EN 1993-1-4:2025:2026 – UK National Annex for stainless steel structures
When working in South American markets, we ensure designs also consider:
Peru: Seismic Zone 4 compliance (E.030 seismic standard compatibility)
Chile: NCh433 seismic standard alignment
Brazil: NBR 8800 steel structure standard (Portuguese technical documentation available)
Argentina: CIRSOC 301-1 steel structure compliance
Need compliance documentation for your tender? Request our AISC/EC3 compliance package — including design certificates, material test reports, and weld procedure specifications.
How to Select a Steel Frame Supplier
| Criteria | What to Look For | Red Flags |
|---|---|---|
| Engineering capability | Seismic design per AISC 341-22 or EC3; complex load calculations | No in-house engineering team |
| Fabrication quality | ISO certification; modern CNC/robotic welding | Manual welding only; no quality records |
| Track record | Similar project delivered on time and within budget | No references or case studies |
| Technical support | Engineering support throughout full lifecycle | No after-sales support commitment |
| Cost transparency | Clear pricing, lead times, and scope definition | Vague quotes; hidden charges |
| Sustainability | Low-carbon steel options; LEED/GREEN building experience | No environmental policy |
| South America readiness | Bilingual documentation; local standard knowledge; port logistics experience | No export experience to the region |
Get the complete supplier evaluation toolkit. Download our Steel Frame Supplier Checklist (25 Questions) — used by procurement teams across 30+ countries, including Spanish/Portuguese translation options available.
Wire Arc Additive Manufacturing enables geometric freedom. Hong Kong's "Weaving Love" pavilion is a recent landmark demonstrating the technology's potential for custom architectural steel elements.
Lightweight, stable, and rot-resistant. MCO beams with rigid hollow-flanges are now tailored for prefabricated floor systems, gaining traction in South American modular construction markets.
Retaining and reconfiguring existing frames cuts embodied carbon significantly—an approach increasingly adopted by developers seeking LEED and EDGE certifications in Latin America.
Robotic welding, CNC cutting, and BIM integration are now industry standard, enabling faster delivery and tighter tolerances for South American projects where on-site skilled labor may be limited.
Q: What is the lifespan of a steel frame structure?A: Exceeds 50 years with proper maintenance and protective coatings.
Q: Is steel framing more expensive than concrete?A: No. Steel offers up to 41.28% greater cost-effectiveness over RCC, with 8–13% lower life-cycle costs.
Q: How does steel perform in earthquakes?A: Exceptionally well. Steel's ductility makes it superior to concrete for seismic zones, including South America's Pacific Rim regions.
Q: Is steel environmentally sustainable?A: Yes. Steel is infinitely recyclable. The industry's 2025 framework covers 19 indicators with 93 reporting companies.
Q: Braced frame vs. moment-resisting frame—which to choose?A: Braced frames use diagonal bracing (more cost-effective). Moment frames use rigid connections (more design flexibility). Choose based on your floor-plan requirements.
Q: Can you deliver to South America?A: Yes. We have extensive export experience to Peru, Chile, Brazil, Argentina, and Ecuador—including bilingual documentation and port logistics coordination.
Have a specific question about your project? Ask our engineering team directly — we respond within 24 hours, in English, Spanish, or Portuguese.
With fabrication market reaching $200B by 2031 and PEB growing at 8.3% CAGR, steel framing delivers proven ROI across speed, cost, sustainability, and resilience.
Option 1: Request a Free Quote — Get a preliminary budget estimate within 48 hours.
Option 2: Download the Supplier Checklist — 25 questions to ask before signing any contract.
Option 3: Book a 15-Minute Consultation — Speak directly with our senior structural engineers.
All services are confidential and obligation-free.
