Commercial Steel Buildings in Southeast Asia: Project Guide

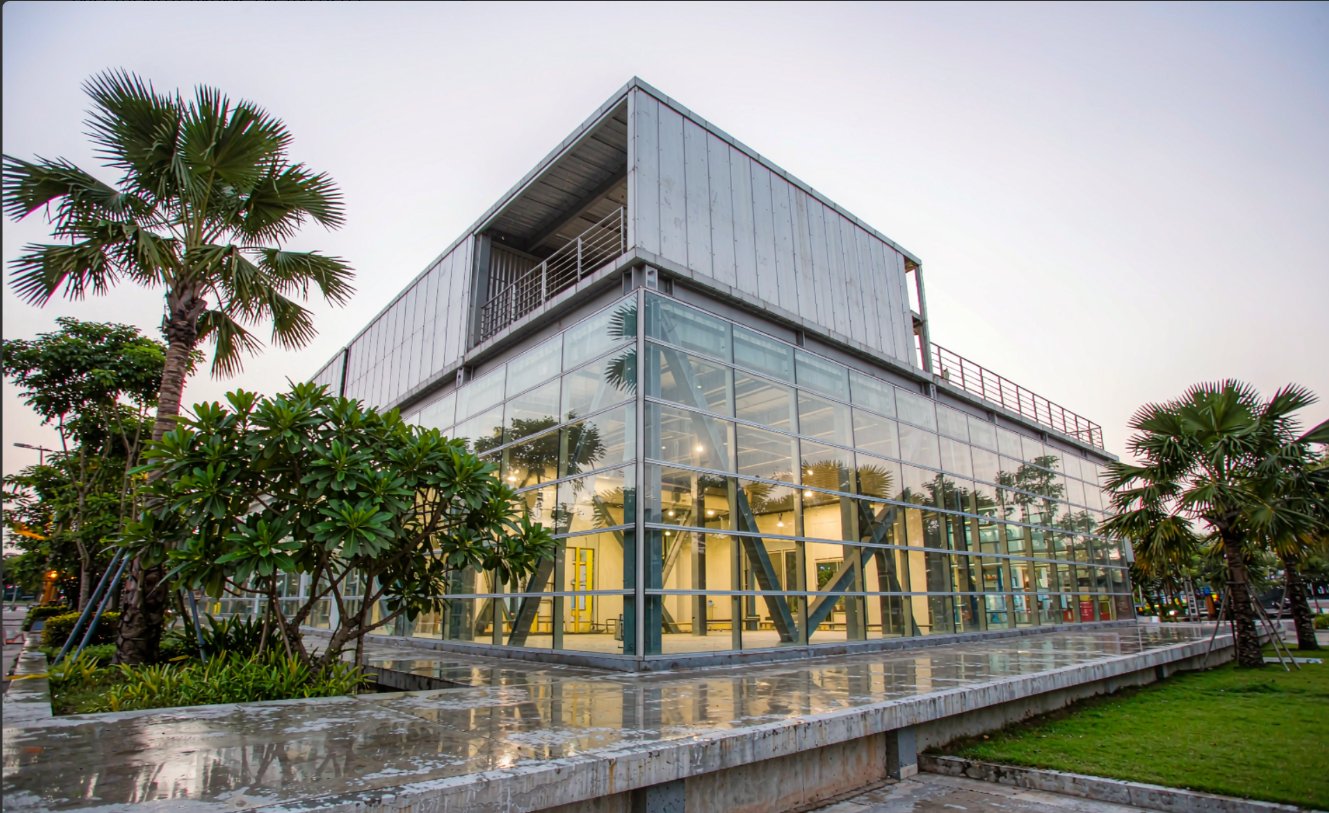

A commercial steel building with a full-height glazed facade — the typical configuration for showrooms and retail podiums in the region.

A commercial steel building is not a warehouse with a nicer facade. The moment a building accommodates people rather than goods, the design brief changes: occupant loads, escape distances, fire protection of the frame, facade tolerances, acoustic separation and floor vibration all become governing constraints. In Southeast Asia these requirements meet a climate that punishes poor detailing — high humidity, monsoon rain and, in the Philippines and Vietnam, typhoon wind.

This guide covers the commercial building types that are routinely built in steel across the region, the code and fire questions that decide feasibility, the five project typologies buyers most often ask about, and the procurement steps that keep a commercial programme on schedule. It is written for developers, architects and contractors assessing a steel option against in-situ concrete.

Key takeaways

Steel wins on programme, not on frame cost. Fabrication runs parallel with foundations, and low-rise frames erect in two to six weeks — the schedule advantage is largest on constrained urban sites.
Fire strategy decides the structure. Occupancy, height and egress requirements determine whether steel needs intumescent coating, board protection or concrete encasement — decide this before tender.
Facade coordination is the real risk. Curtain wall tolerances, embed positions and waterproofing details must be fixed before the frame is fabricated, not after erection.
Codes are national, not regional. NSCP 2015 (Philippines), SNI 1726/1727 (Indonesia), TCVN (Vietnam), MS EN 1993 (Malaysia) and EIT (Thailand) govern loads; local engineers must seal the drawings.
Vibration and deflection drive member sizing in retail and office floors far more often than strength does — specify the limits, do not let them default.

Contents

1. Why steel for commercial buildings

Four arguments recur in commercial projects across the region:

Programme. Factory fabrication and site foundation work proceed simultaneously. A low-rise frame can be erected and made weather-tight while a comparable concrete frame is still curing — decisive when a retail opening date or lease commencement is fixed.
Span and column-free floor area. Retail, showroom and exhibition functions monetise clear space. Steel frames deliver long spans with shallower structural depth than concrete, which also reduces floor-to-floor height and therefore facade area and cladding cost.
Site constraints. Urban plots in Jakarta, Ho Chi Minh City, Bangkok and Metro Manila rarely offer laydown space. Prefabricated members arrive sequenced and are lifted directly into position — less site storage, less formwork, less wet trade.
Future adaptability. Tenants change. Bolted steel frames can be reinforced, extended or reconfigured more readily than cast-in-place structures, and mezzanine additions are comparatively straightforward.

The counter-arguments are equally concrete: steel needs fire protection that concrete provides inherently, it is more sensitive to connection detailing, and its cost is exposed to steel price volatility in a way that concrete is not. On low-rise, repetitive buildings with no programme pressure, concrete often remains cheaper.

2. Building types and their structural logic

Type	Typical configuration	Governing structural issue
Showroom / car dealership	Single or two storeys, 12–24 m clear span, full-height glazing to frontage	Long-span roof or floor beams; facade deflection limits; wind uplift on large glazed areas
Retail podium / mall	2–4 storeys, 8–12 m grids, atria and long escalator voids	Floor vibration from crowds, transfer structures at voids, fire compartmentation
Office building	4–8 storeys, composite steel deck slabs, curtain wall	Floor vibration and deflection; stability system; fire rating of exposed members
Hotel / serviced apartment	5–10 storeys, regular room grid, acoustic separation	Acoustics and floor vibration; services coordination; fire strategy for sleeping risk
Mixed-use block	Retail below, office or residential above	Transfer of discontinuous columns; differential movement between uses
Fuel station / convenience retail	Single-storey canopy plus shop box	Canopy uplift and cantilever; impact protection; small-footprint logistics

Two entries deserve emphasis. Showrooms are the most common commercial steel building in the region and the most facade-driven: the glazed frontage is the product, so frame stiffness and facade tolerances are commercial requirements, not technical niceties. Retail podiums and malls are the most structurally complex, because atria, escalators and long-span pedestrian areas create transfers, openings and vibration-sensitive floors simultaneously.

3. Five project typologies in the region

The five profiles below are illustrative typologies built from common project briefs in each market. They are not descriptions of specific client projects, and the parameters are indicative ranges rather than design values.

Typology A — Two-storey car showroom, Greater Jakarta, Indonesia

Indonesia · 2 storeys · ~18 m clear span · SNI 1726/1727 · high seismic

Brief: a franchised dealership with a double-height glazed showroom at ground level, workshop and parts store behind, offices above. The site sits on soft coastal-plain soils with a high water table.

Design response: the frame is a steel portal with a composite first floor; the glazed frontage is set on a secondary steel sub-frame so facade tolerances are independent of the main frame. Seismic detailing at beam-column connections and ductile bracing are designed to SNI requirements, and the foundation is piled rather than pad footings because of the soil profile. Roof drainage is designed for monsoon intensity with internal downpipes concealed behind the facade.

What decides success: fixing the facade embed positions before fabrication, and confirming the workshop's equipment loads before the first-floor framing is finalised.

Typology B — Three-storey retail podium, Ho Chi Minh City, Vietnam

Vietnam · 3 storeys · 9 × 11 m grid · TCVN · dense urban site

Brief: a neighbourhood retail centre with a supermarket anchor, 40 small tenancies and a rooftop F&B terrace. The plot is narrow with a single access road; there is no laydown area.

Design response: a steel frame with composite slabs, erected in phases from one access point using a single tower crane. Escalator voids and an atrium are framed with transfer beams; fire compartmentation follows the tenancy layout so that shopfront lines and fire walls coincide. The rooftop terrace adds imposed load and requires a waterproofing and insulation build-up coordinated with the roof steel.

What decides success: tenancy layouts fixed early enough that transfer beams and compartment walls align with commercial leases; sequencing that matches deliveries to crane availability on a constrained street.

Typology C — Six-storey office building, Metro Manila, Philippines

Philippines · 6 storeys · composite deck · NSCP 2015 · Zone 4 seismic + typhoon wind

Brief: a speculative office building with ground-floor retail, a basement car park and a full curtain wall, targeting multinational tenants requiring resilient services.

Design response: a steel frame with composite steel deck slabs and a braced or moment-resisting stability system designed for both NSCP seismic and typhoon wind — in the Philippines both must be satisfied, and wind frequently governs cladding and connections while seismic governs ductility detailing. Curtain wall performance is specified for design wind pressure and watertightness, with tested assemblies preferred. Condensation control inside the facade is designed rather than assumed, given year-round humidity.

What decides success: a fire strategy agreed with the local building official at concept stage, because it determines whether frame members are exposed, coated or encased — and that changes the architectural ceiling and services zones.

Typology D — 120-key hotel, Phuket, Thailand

Thailand · 5 storeys · regular 7.5 m room grid · EIT standards · coastal corrosion

Brief: a resort-adjacent hotel with a lobby pavilion, all-day dining, and guest rooms in a five-storey block set back from the beach.

Design response: steel framing for the guest-room block with composite slabs, chosen for programme and for the acoustic control available through floating screeds over steel deck. Coastal exposure drives a C4-level coating specification on exposed steel, stainless or hot-dip galvanized fixings, and careful detailing at balcony penetrations. The lobby pavilion uses a long-span steel roof with exposed structure as an architectural feature — which requires an intumescent coating system selected for appearance as well as fire rating.

What decides success: acoustic and vibration performance of the floor build-up signed off before the slab detail is frozen; coating specification written in measurable terms rather than "painted steel".

Typology E — Mixed-use commercial block, Johor Bahru, Malaysia

Malaysia · 4 storeys retail + 6 storeys office · MS EN 1993 · UBBL approval

Brief: a podium-and-tower development where the retail grid (9 m) does not align with the office grid (8 m), and the tower is set back from the podium edge.

Design response: steel transfer structures at the podium roof carry the discontinuous tower columns; differential axial shortening between the two structural systems is assessed so facade and services risers accommodate movement. Approval runs through the local authority under UBBL with a registered Professional Engineer, plus Bomba review for fire and means of escape. The frame is detailed for prefabrication because the site is bounded on three sides.

What decides success: transfer structure geometry agreed with the architect before the podium frame is fabricated — retrofitting transfers is the single most expensive change a commercial steel project can make.

4. Fire, egress and code

In commercial buildings, fire strategy is not a downstream compliance task — it shapes the structure. The governing questions are:

Occupancy and occupant load — retail, assembly, business and hotel uses carry different egress requirements and travel distances.
Building height and compartment size — these determine the required fire resistance period for structural members.
Protection method — intumescent coating (fast, appearance-sensitive, thickness depends on section factor), board protection (robust, bulkier), concrete encasement (heaviest, best for exposed columns), or unprotected steel where a sprinklered design and the local code permit it.
Facade performance — cladding and curtain wall systems are subject to fire performance requirements in their own right; confirm the applicable test standard for the destination market.
Smoke control and atria — large voids require engineered smoke management, which in turn affects ceiling zones and structural exposure.

Ask the local authority for a pre-application meeting on the fire strategy before design freeze. In several Southeast Asian markets this single conversation determines whether the frame can be exposed — a decision that changes coating cost, ceiling design, services routing and, in hotels, room layout.

Structural codes run in parallel: NSCP 2015 in the Philippines (with seismic Zone 4 applying to most of the country and design wind speeds commonly 200–250 km/h or higher by municipality); SNI 1726 and SNI 1727 in Indonesia for seismic and minimum loads; TCVN standards in Vietnam with ASCE 7 overlays; MS EN 1993 in Malaysia; EIT standards in Thailand. In every case the structural documents normally require a seal from an engineer licensed in that country — a supplier's calculation package supports that review but rarely replaces it.

5. Envelope, climate and facade

The facade is where commercial steel buildings in the region succeed or fail. Four issues recur:

Tolerance conflict. Steel frames deflect; curtain wall systems have tight installation tolerances. The interface must be resolved with slotted connections, secondary framing or a designed gap — decided on drawings, not on site.
Water management in monsoon conditions. Large glazed areas need designed drainage paths, pressure-equalised rainscreen principles, and detailing at parapets, sills and junctions that assumes wind-driven rain rather than vertical rainfall.
Condensation. Cool interior surfaces meeting humid exterior air produce interstitial condensation inside facades and roof build-ups. Vapour control layer position and thermal bridging matter more than insulation thickness.
Solar gain. In tropical latitudes, west-facing glazing drives cooling load. Glass specification, shading and orientation decisions made at concept stage affect both energy cost and the comfort that determines tenant satisfaction.

Corrosion protection follows the same logic used for industrial buildings but with higher visibility: exposed structural steel on a coastal commercial project needs a measurable coating specification — surface preparation grade, coating types, dry film thickness and a defined touch-up procedure for cut edges and site welds.

6. Cost drivers and programme

Commercial steel buildings cost more per square metre than warehouses, and the reasons are structural rather than material: multi-storey frames, composite floors, fire protection, facade systems, lifts and services all enter the budget. As a reference point, published project data for Malaysia puts a basic single-storey warehouse shell at roughly US$55–85/m²; a commercial building with a multi-storey frame, curtain wall and MEP systems substantially exceeds that, with facade and services typically accounting for a large share of the total.

Five variables move the number most:

Storey count and grid regularity — irregular grids and transfers add steel fast.
Fire protection method — intumescent coating versus board versus encasement can differ materially per tonne.
Facade specification — unitised versus stick-built curtain wall, glass performance, shading.
Vibration and deflection limits — stringent limits increase member sizes without changing the building's appearance.
Site logistics — constrained urban sites require sequenced deliveries and crane time, which is a cost line in its own right.

On programme, the steel frame is rarely the critical path. Fabrication typically takes four to eight weeks and a low-rise frame erects in two to six weeks, while foundations, facade procurement and fit-out usually govern the overall schedule. That is why facade packages should be tendered at the same time as the frame — the most common cause of delay on commercial steel projects is a facade that was specified after the structure was ordered.

7. Procurement checklist

Item	What to specify before tender
Design basis	Applicable code, design wind speed and seismic parameters for the actual site; deflection and vibration limits for each floor use
Fire strategy	Required resistance period, protection method per member type, treatment of exposed architectural steel
Grid and transfers	Column grid, transfer locations, atrium and escalator openings, mezzanine loads
Facade interface	Embed and bracket positions, tolerance allowance, waterproofing responsibility, mock-up requirement
Floor build-up	Composite deck depth, screed and finishes, acoustic and vibration performance targets
Coating	Corrosivity category, surface preparation, DFT per coat, site touch-up procedure
Scope boundaries	Who designs connections, who supplies embeds and anchor bolts, who seals drawings locally, who supervises erection
Documentation	Shop drawings, mill certificates, weld records, coating reports, erection drawings, as-built package

Commercial work also benefits from early agreement on sample and mock-up requirements: a facade mock-up, a coating sample panel and a fire-protection thickness trial each prevent disputes later at modest cost. For standardised low-rise commercial shells, standardized building configurations can shorten both quotation and fabrication; where the brief includes atria, transfers or a bespoke facade, customized steel buildings are the correct route.

Product references for the two most common types: commercial steel buildings, prefabricated steel office buildings and steel structure showrooms. For the structural background behind span and connection choices, see the steel frame structure guide and the note on rigid versus pinned column bases; for budget logic, the 2026 cost guide explains how scope layers change the number.

Frequently asked questions

Are steel structures suitable for shopping malls and retail buildings?

Yes, and they are common across Southeast Asia. Steel frames suit long spans for retail floors and atria, allow fast erection on constrained urban sites, and coordinate well with curtain wall facades. The design must address fire protection, occupant-load egress, floor vibration and deflection limits, and the frame-to-facade interface.

How many storeys can a commercial steel building have?

There is no fixed limit. Steel frames with composite deck slabs are routinely used for four to eight storey offices and hotels in the region, and higher where structure and fire strategy support it. Storey count is governed by fire strategy, egress capacity, foundations and local code limits rather than by the frame material.

What fire protection does a commercial steel building need?

It depends on occupancy, height and the local fire code. Common approaches are intumescent coatings, board protection, concrete encasement, or unprotected steel where a sprinklered design and the code allow it. Commercial occupancies also require attention to escape distances, smoke control, compartmentation and facade fire performance.

Which building codes apply to commercial steel buildings in Southeast Asia?

The Philippines uses NSCP 2015 under the National Building Code; Indonesia applies SNI 1726 and SNI 1727; Vietnam uses TCVN standards; Malaysia applies MS EN 1993 with UBBL approval; Thailand applies EIT standards. Fire codes are separate national instruments, and structural drawings normally require a locally licensed engineer's seal.

How long does a commercial steel building take to construct?

The frame is fast: fabrication typically four to eight weeks, erection of a low-rise frame two to six weeks depending on size. Overall programme is usually governed by foundations, facade procurement and fit-out rather than the steel structure — which is why facade packages should be tendered alongside the frame.

Conclusion

Commercial steel buildings work in Southeast Asia for a specific reason: they convert a fixed opening date into a manageable construction sequence. They deliver long spans and flexible floor plates that commercial tenants pay for, and they can be erected on sites where concrete logistics would fail.

They also fail for a specific reason, and it is rarely the steel: unresolved fire strategy, a facade specified after the frame was ordered, or a transfer structure designed after the podium was fabricated. Fix those three interfaces at concept stage and the material choice becomes what it should be — a commercial decision about programme and adaptability, not a technical gamble.
