What good design means for a custom portal frame workshop — loads, spans, cranes, envelope and the checks buyers should run
Updated: October 2026 Reading time: about 8 minutes For plant owners, EPC contractors & procurement teams
Almost every steel workshop on the market claims to be customized. Far fewer are well designed. The distinction matters because a portal frame is a highly optimized structure: it earns its economy by resisting loads efficiently, and it punishes wrong assumptions with cracked haunches, sagging crane runways and doors that will not close in the wind. A customized portal frame steel structure workshop is only a good investment when the customization reflects the actual process, the actual loads and the actual site — not a template with the dimensions changed.
This guide explains what good design means for a portal frame workshop: the decisions that shape the frame, the way cranes and equipment integrate with the structure, the specification details that decide long-term performance, and the documentation buyers should require before placing an order. It is written for plant owners, EPC contractors and procurement teams evaluating customized steel structure workshops and production plants.
Key takeaways
Customization means engineering to the process. Span, eave height, bay spacing, crane capacity and door positions should follow the equipment and workflow — not a catalog module.
The portal frame is economical up to roughly 30–36 m of clear span. Beyond that, tonnage rises sharply; go bigger only when the process justifies it.
Crane data must be frozen before frame design. Wheel loads, surge forces and fatigue criteria change column sizes, foundations and bracing.
Deflection and connection detailing decide how the building feels long before strength does — specify limits, do not let them default.
Documentation is the quality signal. Mill certificates, weld records, connection calculations and a PE-stamped design basis separate fabricators from steel sellers.
Contents

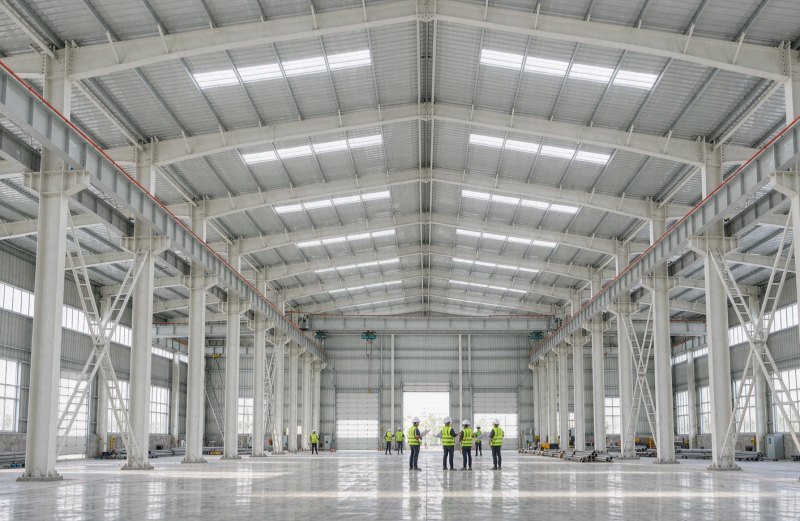

The portal frame — rigid or semi-rigid beam-to-column connections, tapered or uniform rafters, haunched knees — remains the default structural system for single-storey production buildings for three reasons:
Structural efficiency. The moment connection at the knee allows rafters and columns to work together, so members stay shallow and steel tonnage per square meter stays low. Foundations are lighter than those for braced frames carrying the same loads, because horizontal thrust is partly resisted by frame action.
Clear internal space. With bracing concentrated in designated bays and services running under the rafter line, a portal frame workshop offers long column-free production floors — the layout flexibility that workshops exist to provide.
Fabrication and erection speed. Every member is cut, drilled and welded in the factory and bolted together on site. Main-structure erection for a 10,000 m² class workshop typically runs 35–45 days, roughly half the schedule of a comparable conventional build.
The system has limits, and good design respects them. Portal frames are sensitive to foundation movement, they need deliberate stability systems in the longitudinal direction, and their economy degrades as spans push past the mid-30-meter range. Where a brief demands very long clear spans or heavy multi-storey production floors, other systems — trusses, rigid multi-storey frames — may serve better. The structural background is covered in the site's steel frame structure guide.
"Good design" in a portal frame workshop is not aesthetics. It is a short list of engineering decisions made correctly, in the right order:
Loads defined before geometry. Dead, live, snow, wind and seismic loads come from the site location and the applicable code — not from assumptions. Equipment loads, mezzanine loads and future expansion plans belong in this step. A frame designed on guessed loads is customized in name only.
Span chosen by the process. Conventional portal frames are most economical up to roughly 30–36 m. Custom designs can reach clear spans around 48 m, but each increment adds rafter depth, haunch size and foundation demand. Good design uses the smallest span that fits the process.
Deflection and drift limits specified. For workshops, serviceability usually governs: crane runway deflection limits, rafter deflection under purlins that carry insulated panels, and column drift limits that keep wall cladding and roller doors operational. These limits must be written into the design basis, not left to the fabricator's habit.
Connection detailing treated as design, not drafting. Haunches, column splices and base connections concentrate the frame's demand. Whether column bases are fixed or pinned changes the foundation and the frame behavior — the trade-off is explained in the note on rigid versus pinned column bases.
Stability designed in both directions. Portal action handles transverse wind; longitudinal stability needs bracing bays, and roof plan bracing distributes wind into them. Good designs place bracing where doors and layout allow — which is exactly why bracing locations belong in the customization conversation.
A practical test of a supplier's design quality: ask for the design basis report before the general arrangement drawings. A serious fabricator produces loads, load combinations, deflection limits and software assumptions first. A steel seller starts with a 3D rendering.
"Customized" is a spectrum. The table below shows the parameters that a custom workshop design should respond to, and what drives each one:
| Parameter | Typical range | What drives the choice |
|---|---|---|
| Clear span | 18–36 m conventional; up to ~48 m custom | Process layout, crane span, aisle and machine clearances |
| Eave height | 6–12 m; higher for stacking or tall equipment | Crane hook height, equipment height, ventilation strategy |
| Bay spacing | 6–9 m typical | Door positions, equipment foundations, purlin economy |
| Overhead crane | 5–100 t (company-reported capability) | Production process and lift weights |
| Floor live load | Up to ~50 kN/m² for heavy equipment zones | Machine plinths, stored materials, forklift routes |
| Doors | Roller, sectional, sliding; any position | Logistics flow, vehicle sizes, crane access for maintenance |
| Envelope | Single-skin, insulated sandwich panels, daylighting | Climate, condensation control, energy targets |
Two of these deserve emphasis. Eave height is the most frequently under-specified parameter: buyers size it for the current crane and discover later that a taller machine, a second crane level or ductwork no longer fits. Bay spacing interacts with everything — door widths, purlin spans, bracing positions — and should be settled with the layout drawing, not adjusted by the fabricator for steel economy alone. For buyers whose requirement is genuinely simple storage, a standardized building configuration may deliver the same function at lower cost; customization earns its premium when cranes, equipment loads or an irregular site enter the brief. The full customization route is described on the customized building page.
Nothing shapes a workshop frame more than its cranes. Overhead bridge cranes run on runway beams supported by the portal columns — either on corbels or on stepped columns with a separate crane ledge — and they convert the frame from a wind-and-roof structure into a fatigue-loaded industrial structure:
Vertical wheel loads from the crane and its lifted load pass into the columns and foundations at every bay, often governing column size below the crane girder.
Lateral surge and longitudinal braking loads act at the runway level and add to wind in load combinations.
Deflection and fatigue criteria for the runway beam are stricter than for ordinary floor beams; class of crane duty (how many lifts per hour, how close to rated capacity) matters as much as tonnage.
Good practice is to freeze crane data — capacity, span, duty class, total weight, maximum wheel load, end clearance dimensions — before the frame is designed. Equally important is honesty about the future: if a heavier crane is plausible within the building's life, saying so at design stage costs little; retrofitting one later means new columns or new foundations.
Equipment integration follows the same logic. Machine plinths, presses and production lines bring concentrated loads and vibration that the slab and, where mezzanines exist, the framing must carry. A layout sketch with equipment positions is the single most useful document a buyer can hand a supplier — it converts a generic quote into a real design.
The frame carries the loads; the envelope decides whether the building stays usable. Four specification points recur in workshop projects:
Roof system and drainage. Roof slope, purlin spacing and gutter sizing must match local rainfall intensity. Low-slope roofs with undersized gutters are the most common source of leaks in exported buildings delivered to monsoon climates.
Insulation and condensation. Insulated sandwich panels with an appropriate vapor-control strategy prevent condensation dripping onto machines and products. In humid coastal sites, this is a process-quality issue, not a comfort issue.
Daylight and ventilation. Roof skylights, louvers and ridge vents reduce lighting and cooling load — but their openings must be detailed against wind-driven rain and factored into the roof bracing.
Corrosion protection. Coating specification should be written in measurable terms — surface preparation grade, coating system, dry film thickness — matched to the site's corrosivity category. Coastal and chemical-plant environments demand heavier systems; fasteners, flashings and cut edges need their own treatment. Envelope options are covered under steel building materials.
A good design executed badly still produces a bad building. The fabrication-side checks that matter most:
Material traceability. Mill certificates for every batch of primary steel — commonly Q355B/Q345B or ASTM A572 Gr.50 — matched to the members actually delivered.
Welding quality. Weld procedures qualified to AWS D1.1 or the applicable standard, with records for structural welds; CE marking to EN 1090 where the destination market requires it.
Connection engineering. Shop drawings and connection calculations — not just frame analysis — so that the local engineer and the buyer can verify haunches, splices and base plates.
Coating reports. Dry film thickness measurements against the specification, with touch-up procedures for site damage.
Erection documentation. Sequenced erection drawings, anchor bolt setting plans and torque requirements, ideally with supplier supervision at first erection.
Suppliers differ sharply on this point. A manufacturer with in-house engineering can supply design calculations to AISC, Eurocode 3 or GB standards and arrange PE stamping where the destination jurisdiction requires it; an intermediary trading fabricated tonnage cannot. The distinction is worth checking before the first payment, and the steel structure workshop product page lists the certifications and design standards a manufacturer of this type should be able to evidence.
Span inflation. Choosing 40 m because the rendering looks impressive when 24 m serves the line — then paying for it in tonnage, foundations and crane span.
Crane data as an afterthought. Ordering the frame before the crane is specified, then discovering the runway loads do not match the crane actually purchased.
Silent deflection limits. Accepting "as per standard" serviceability criteria, then finding wall panels, doors or crane runways perform visibly poorly.
Bracing forgotten in the layout. Finalizing door and partition positions that leave no bay for the longitudinal bracing the stability design assumed.
Envelope detailed for another climate. A specification that worked in a temperate climate applied to a monsoon or coastal site without revisiting drainage, insulation and coating.
Foundation assumptions unverified. Portal frames generate horizontal thrust; assuming "ordinary" soil without a geotechnical check moves risk to the cheapest and least visible part of the project.
None of these are exotic. All of them are caught by one habit: requiring a written design basis — loads, limits, assumptions and standards — as a deliverable before fabrication starts. For budget context around the whole scope, see the 2026 steel structure cost guide, and for the broader steel-versus-concrete decision, the comparison of steel and concrete factory buildings.
It means the frame is engineered around your process, not selected from a fixed catalog: span, eave height, bay spacing, crane capacity, mezzanine loads, door positions and envelope specification are all designed for the actual equipment, workflow and site. A standardized kit building may be cheaper for simple storage, but production workshops with cranes or heavy equipment normally justify a customized design.
Conventional portal frames are economical up to roughly 30–36 meters. Beyond that, steel tonnage per square meter rises sharply because rafters, haunches and foundations all grow. Custom designs can reach clear spans of around 48 meters with heavier sections, but each step up in span should be justified by the process layout rather than chosen by default.
Crane runway beams are supported on stepped columns or corbels attached to the portal columns. The frame must be designed for vertical wheel loads, lateral surge and longitudinal braking, plus the fatigue and deflection criteria that come with crane duty class. Crane data must be fixed before frame design — retrofitting a heavier crane later is expensive.
Site location (for wind, snow and seismic loads), building dimensions, crane data, equipment loads and positions, door sizes and types, insulation and ventilation requirements, the applicable design standard, and the corrosion environment. A layout sketch with equipment positions is the single most effective way to get an accurate quote.
After design approval, fabrication typically takes four to eight weeks depending on tonnage, and main-structure erection for a 10,000 m² class workshop commonly runs 35–45 days. Design approval and foundations usually govern the overall schedule — which is why freezing crane data and equipment loads early matters more than fabrication speed.
A customized portal frame steel structure workshop is customized when the design responds to the process — loads, cranes, equipment, climate — and it is good when those responses are documented, checkable and built by a fabricator who can prove material, weld and coating quality. Everything else is a rendering.
The practical path for buyers is short: prepare the layout sketch and crane data, require a design basis report before general arrangement drawings, and demand the documentation package with the steel. Do those three things and the portal frame will do what it has done for decades — deliver the most workshop per unit of steel and schedule that the industry knows how to build.
